|Stainless Steel + Steel Frame
|Vertical Knife Cutting Speed:
|280 Or 530 Times/min
fruit vegetable washer machine,
vegetable cutter slicer machine

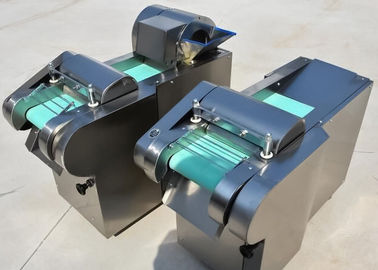

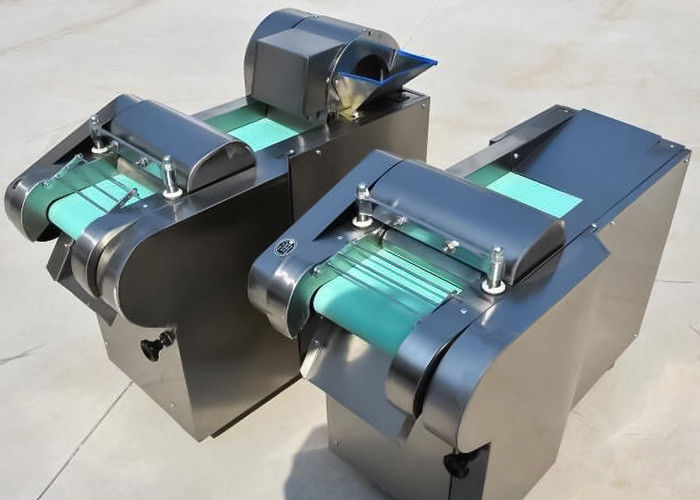

Multifunction Rotary Electric Vegetable Slicer Fruit Potato Cutter Slicer
This Vegetable slicer is a compound multi-function cutting machine developed by simulating the principle of manual cutting, using advanced technology such as “stepless speed regulation”, “infinite adjustment mechanism” and “centrifugal slicing mechanism”. Widely used in the processing of hard and soft roots, stems, leafy vegetables and kelp, can be cut into pieces, silk, blocks and other styles.
Precautions of Vegetable slicer
1. Wash the vegetables before cutting vegetables to avoid foreign matter in the vegetables and damage the tools and other parts.
2. Do not put your hand near the cutter or reach under the safety net during the operation of the machine to avoid danger.
3. Do not put your hands on the conveyor belt or the pressing belt during the operation of the machine to avoid danger.
4. Do not activate the switch during machine maintenance to avoid danger.
5. Do not perform any kind of repair and maintenance during the operation of the machine to avoid danger.
6. The product's slicing knife and vertical knife are equipped with safety shields and protective nets. Do not dismantle them at will to avoid danger.
1. All maintenance work must be carried out with the power off.
2. After each use, carefully clean the machine. Do not use the sharps to touch the conveyor belt and the vegetable belt when cleaning. Do not spray with the spray pipe.
3. If the conveyor belt and the pressing belt are loose, the tension bolts should be adjusted or the spring pressure should be adjusted to the proper position. The tension or pressure at both ends should be basically equal. Otherwise, the conveyor belt or the pressing belt is prone to deviation.
4. Check the tightness and wear of the V-belt and adjust and replace it in time. When the V-belt is loose, loosen the bolts of the tensioning mechanism for adjustment, and tighten the bolts when the V-belt is tightened.
5. Each shift will be injected into the ratchet, gear and sprocket once. The oil No. 20 is used. The amount of oil is 10 drops per time. The grease in the bearing is added and replaced according to the usage. Calcium-based is selected. Grease grease.
6. In the machine work, if the machine sound is not normal, you must stop the inspection immediately, and wait until the fault is removed before you can continue working.
