Product Details:
|
Name: | Vegetable Cutting Machine | Machine Size: | 1310×600×880 Mm |
---|---|---|---|
Material: | Stainless Steel | Warranty: | 1 Year |
Power: | 1.5 KW | Weight: | 170 Kg |
High Light: | fruit vegetable washer machine,vegetable cutter slicer machine |

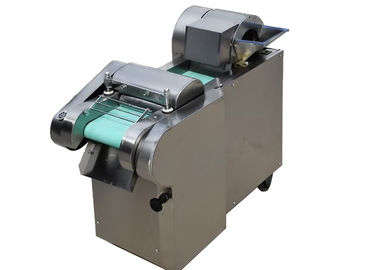

Multifunctional Fruit and Vegetable Cutting Machine for Potato Fries Green Onion
Product description
This Vegetable cutting machine simulates the principle of manual cutting, and completes all kinds of hard vegetable slicing, shredding, dicing and so on. It is widely used in the cutting and processing of various roots, stems, leafy vegetables, kelp and soy products, and can be processed into shapes such as sheets, wires, blocks and diced. Suitable for restaurants, cafeterias or food processing plants.
Technical Parameters
Dimensions: 1310 × 600 × 880mm
Machine weight: 170kg
Production efficiency: 200-1000kg/h
Voltage: 220v / customized
Power: 1.5kw
Vertical knife cutting speed: 280, 530 times / min
Slice thickness adjustable: 1-30MM (adjustable)
Vertical knife cutting size can be adjusted: 295/160/3MM (adjustable)
Feed port specification: 500/300/60mm
Features of Vegetable cutting machine
The cut surface is smooth without scratches, without the knife, the thickness and thickness can be adjusted freely, and the cut pieces, strips and wires are smooth and uniform without breakage. Made of high-quality stainless steel, peripheral water inlet lubrication port, no wearing parts, centrifugal working principle, small vibration and long service life.
Uses: Leafy vegetables: spinach, Chinese cabbage, Korean cabbage, celery, roots: potatoes, taro, sweet potatoes, melons, bamboo shoots, onions, eggplant and other products are cut into diced, sliced, silk strips.
Installation and commissioning
1. Place the machine on a level working place to ensure that the machine is placed smoothly and reliably;
2. Check all parts before use, whether the fasteners are loose, whether the switch and power cord are damaged, and take corresponding measures in time;
3. Check if there is any foreign matter in the rotating barrel or on the conveyor belt. If there is foreign matter, it must be cleaned to avoid damage to the cutter;
4. Make sure the power supply voltage matches the rated voltage of the unit. Ask a professional electrician to connect the power cord of the machine to the all-pole disconnected large-open power supply, turn on the power, press the “ON” button to check the steering, and the steering of the V-belt is consistent with the indication. Otherwise, turn off the power and adjust the wiring.
