Fruit Vegetable Washing Equipment For Beef Tripe Prickly Pear Cherry Tomato

China Fruit Vegetable Washing Equipment For Beef Tripe Prickly Pear Cherry Tomato supplier
Fruit Vegetable Washing Equipment For Beef Tripe Prickly Pear Cherry Tomato supplier

Large Image :  Fruit Vegetable Washing Equipment For Beef Tripe Prickly Pear Cherry Tomato

Product Details:

Place of Origin: CHINA
Brand Name: XUANHUA
Certification: CE
Model Number: QX-Q350

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing or according to your requirements
Delivery Time: 5-20 working days after received payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets/month
Contact Now
Detailed Product Description
Machine Name: Bubble Fruit Washing Machine Power: 3 KW
Material: Stainless Steel Warranty: 12 Month
Machine Size: 3500*950*850 Mm Voltage: 380 V / Customized

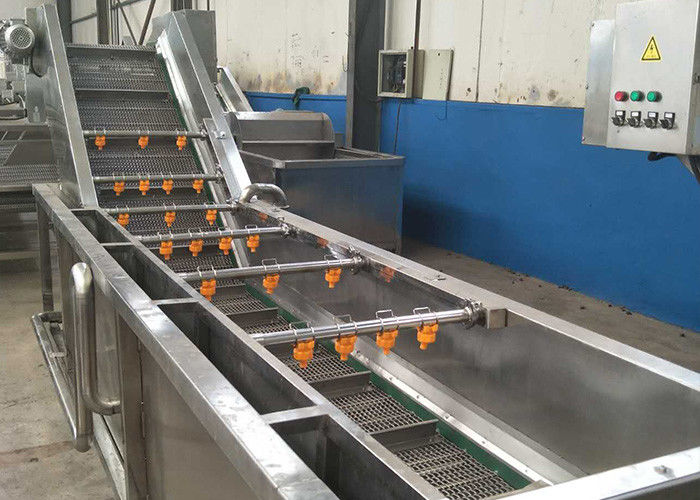

Rotary Fruit Air Bubble Washing Machine for Beef Tripe Prickly Pear Cherry Tomato



Product description

The multi-function bubble cleaning machine is cleaned by a bubble water bath. It is suitable for the cleaning of aquatic products and medicinal materials of various fruits and vegetables (fresh vegetables, pickled vegetables, fungi). It can be customized according to the output. Bubble fruit washing machine is made of high-quality stainless steel. Food hygiene standards, the equipment is equipped with a bubble generating device, so that the material is tumbling, removing mud and dust and surface pesticides. The equipment is made of stainless steel and is a special equipment for cleaning food.



Product advantages
The material enters the water tank and is fully dispersed, tumbling, cleaned and transported under the action of high pressure water flow and strong air bubbles. The sediment eluted from the surface of the material sinks into the bottom compartment, and there is no tumbling backflow to cause re-contamination. In the treatment of sedimentation impurities, through the water circulation of the circulating water pump, the floating matter is discharged through the overflow port at the upper end, and the drifting can not be intercepted through the filter net to ensure that the pool is clean, and impurities can be removed in time to ensure the cleaning effect of the product. The product is transported through the mesh belt and is equipped with secondary water cleaning. While ensuring the cleanliness of the product, the water source can be replenished in time to ensure the cleanliness of the water source in the equipment and achieve the cleaning effect.



Scope of application

Bubble fruit washing machine is used for the floating washing of fresh tomatoes, carrots, apples, mustard, onions, peppers, greens and other root-shaped fruits and vegetables.



Structure

Bubble fruit washing machine consists of a main part such as a tank body, an inner tank body, a sediment isolation net, a lifting device, and a bubble generating device.



During the working process, the medium water passes through the circulating water pump to pump the filtered water into the main tank body to realize the recycling of water, which saves energy and is environmentally friendly; the spraying water in the upper part of the lifting part is always supplied with water, so that the water tank is in the water tank. The sewage is gradually replaced.



Steps
1 Clean the water tank and fill it with water; inject water into the main tank until the overflow overflows.
2 Start the conveyor belt motor to make the belt belt run normally and the direction is correct;
3 Start the vortex pump and inject air into the water tank to make the water in the tank tumbling;
4 Open the spray pipe valve to spray the water evenly on the mesh belt;
5 Check each operating part and make sure it works after normal operation.


Bubble washing machine instructions
1.
Bubble fruit washing machine is widely used in strawberry, apple, orange, potato, potato, and the design of materials with high shape requirements. It is suitable for the cleaning of fruits, leaves and roots such as vegetables, fruits and aquatic products, especially Suitable for growing in the soil.

2.The equipment features

  •  The equipment is equipped with a circulating water pump and a filtered water tank to realize the recycling of cleaning water, save water, and replace the new water according to the actual production situation;
  •  The equipment conveyor belt motor can realize the adjustment and shifting function. The vegetables to be washed are transported through the net chain, automatically feeding, automatic discharging, and adjusting the conveying speed of the conveyor belt according to the production needs;
  •  The equipment is equipped with a spraying device to spray the product during the next process after the cleaning is completed to reduce secondary pollution;
  •  Power: 3KW, voltage: 380V, external dimensions: 3500*950*850 (mm)
