Product Details:
|
| Name: | Meat Processing Machine Injector | Dimension(mm): | 750*1000*800mm |
|---|---|---|---|
| Material: | Stainless Steel 304 | Injection Stroke: | Manual |
| Power: | 0.55KW | Keywords: | Saline Injection Machine |
| Highlight: | automatic sausage filling machine,industrial meat processing equipment |
||

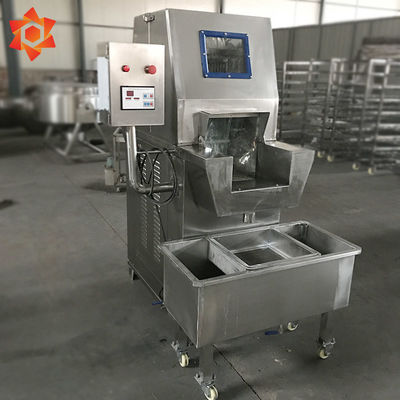

YS-12 Automatic Saline Injection Machine Meat Processing Machine Injector
Product description:
1: The Brine Injection Machine is an important equipment in the production process of meat products. It is mainly used to automatically inject salt water and prepared water into the meat, which shortens the pickling time and greatly improves the taste and export rate of meat products.
2: Wide range of uses: can be injected whole chicken, whole duck, fish, pork, beef and mutton, etc.
3: The machine is divided into manual models and automatic models. The manual models are commonly used with 8 pins and 12 pins. The automatic models are available in 48-pin, 80-pin, 120-pin, 163-pin, 190-pin, etc., which can be customized according to user requirements.
Technical Parameters of YS-12 Automatic Saline Injection Machine Meat Processing Machine Injector :
|
Model |
YS-8/12 |
YS-48 |
YS-80 |
YS-120 |
|
Injection needles |
8/12 |
48 |
80 |
120 |
|
Operating elevation |
Manual |
180mm |
||
|
Injection stroke |
Manual |
4.5-30/Min |
||
|
Meat speed adjustment range |
Manual |
40-60mm/Stroke |
||
|
Voltage |
220/380V |
380V/Customized |
||
|
Power |
0.55KW |
3.7KW |
4.75KW |
5.2KW |
|
Dimensions |
750*1000*800mm |
1080*1270*1820mm |
1140*1320*1830mm |
1200*1400*1820mm |
|
Capacity |
100-300kg/h |
300-600kg/h |
700-1400kg/h |
1500kg/h |
What can we do for you?
1. We can make a suitable plan according to your production requirements
2. We can customize the motor or other accessories according to your local requirements
3. We can help you customized your own LOGO
