Product Details:
|
| Name: | Colloid Mill | Machine Size: | 640*410*900 Mm |
|---|---|---|---|
| Weight: | 150 Kg | Motor Power: | 4 KW |
| Capacity: | 30-80 Kg/h (Material, Fineness, Etc.) | Advantage: | Multifunction |
| High Light: | peanut butter production line,food smoking equipment |
||

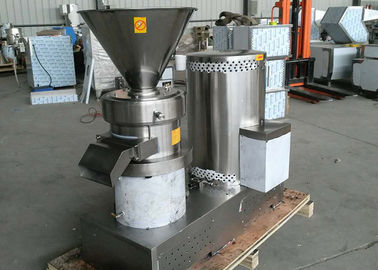

JM80 80Kg Capacity Ultrafine Grinding Mill Vertical Peanut Butter Small Colloid Mill
JM series food grade horizontal colloid mill is composed of 85 type, 130 type stainless steel and semi-stainless steel colloid mill. The basic principle of colloid mill is that the fluid or semi-fluid material passes through the high speed relative linkage between the fixed tooth and the moving tooth to make the material It is subjected to strong shearing force, friction force and high-frequency vibration, and is effectively crushed, emulsified, homogenized and warmed to obtain a satisfactory finely processed product.
Structural features
Colloid mills can be divided into vertical and horizontal depending on the structure. The main part of the main body is composed of a housing, a stator, a rotor, an adjusting mechanism, a motor and the like. Its main parts are made of stainless steel, corrosion resistant and non-toxic. The unit can be used according to different material characteristics, production efficiency, different uses, and different types of colloid mills are used to achieve good results.
Application range
1. Food industry: dairy products, chocolate, bean paste, jam, peanut butter, sesame paste, creamy drinks, etc.
2. chemical industry: pigments, lubricants, spices, dyes, emulsified asphalt, emulsified rubber, catalysts, paints and so on.
3. The pharmaceutical industry: cod liver oil, confidential, Jianer cream, royal jelly, pollen and so on.
4. Daily chemical industry: shoe polish, toothpaste, cosmetics, balsam, soap, detergent, etc.
5. Other industries: construction industry, paper industry, plastics industry, battery industry, etc.
The main parameters
| Model | JM-50 | JM-80 | JM-110 | JM-130 | JM-180 | JM-240 | JM-300 |
| Fineness(Mesh) | 50-100 | 50-100 | 100-200 | 100-200 | 100-200 | 100-200 | 60-200 |
| Power(Kw) | 1.5 | 4 | 7.5 | 15 | 22 | 45 | 75 |
| Capacity(Kg/h) | 10-20 | 30-80 | 150-200 | 300-500 | 800-1000 | 1500-2000 | 3000-4000 |
| Speed(r/Min) | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 |
| Dimension(cm) | 53*26*58 | 64*41*90 | 70*43*98 | 83*44*110 | 83*49*110 | 132*60*128 | 150*80*112 |
| Weight(Kg) | 50 | 150 | 175 | 285 | 340 | 1300 | 1600 |
