Product Details:
|
| Machine Name: | Colloid Mill | Size: | 530*260*580mm |
|---|---|---|---|
| Speed: | 2880 R/Min | Sieve Material: | Stainless Steel |
| Machine Weight: | 150 Kg | After-sales Service Provided: | Online Technical Support Or On-site Service |
| Highlight: | peanut butter production line,food smoking equipment |
||

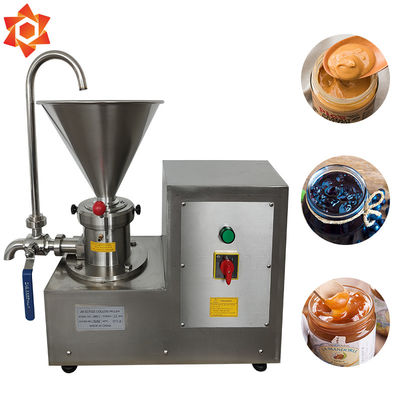

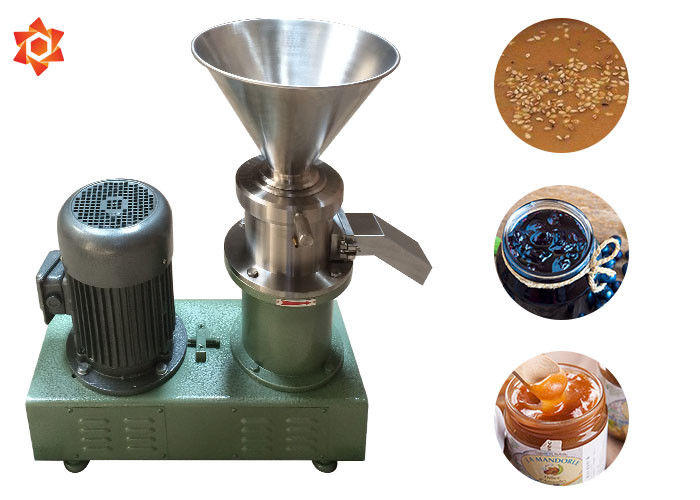

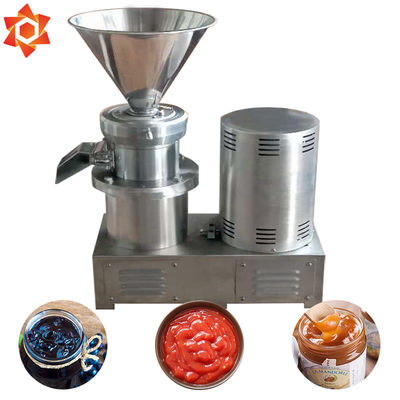

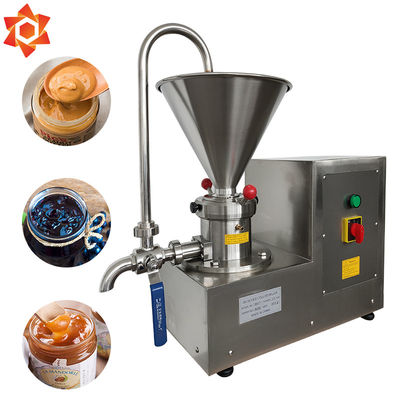

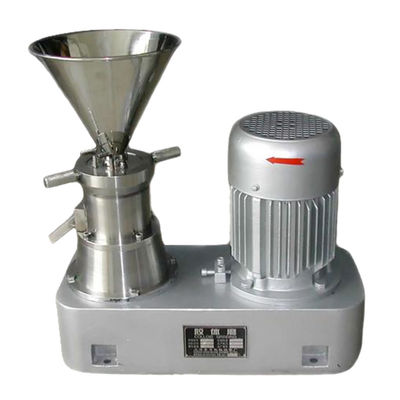

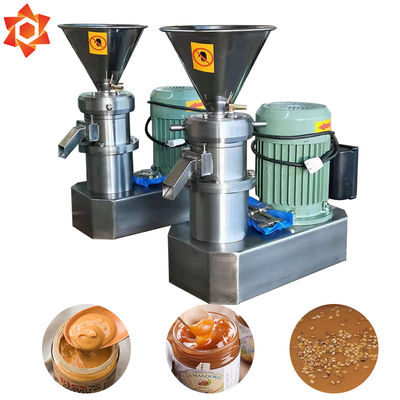

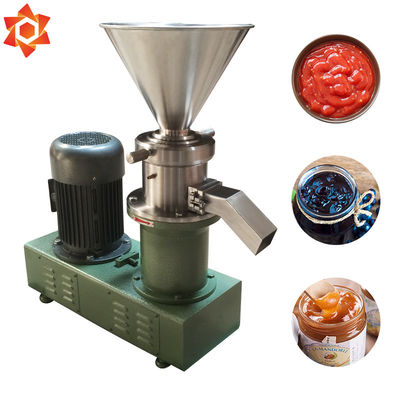

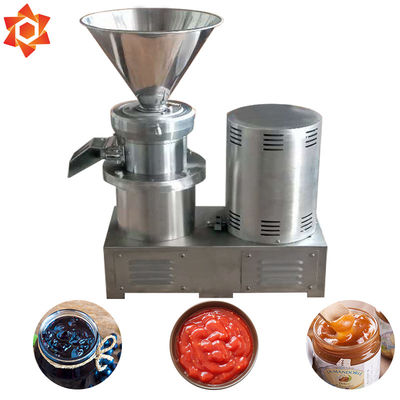

Stainless Steel Automatic Food Processing Machines 2880 R / Min Speed
Technical Parameters Of JM-50 Stainless Steel Grinding Machine Butter Tomato Paste Colloid Mill :
Model | JM-50 | JM-80 | JM-110 | JM-130 | JM-180 | JM-240 | JM-300 |
Fineness(Mesh) | 50-100 | 50-100 | 100-200 | 100-200 | 100-200 | 100-200 | 60-200 |
Power(Kw) | 1.5 | 4 | 7.5 | 15 | 22 | 45 | 75 |
Capacity(Kg/h) | 10-20 | 30-80 | 150-200 | 300-500 | 800-1000 | 1500-2000 | 3000-4000 |
Speed(r/Min) | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 |
Dimension(cm) | 53*26*58 | 64*41*90 | 70*43*98 | 83*44*110 | 83*49*110 | 132*60*128 | 150*80*112 |
Weight(Kg) | 50 | 150 | 175 | 285 | 340 | 1300 | 1600 |
What Can We Do For You?
1. We Can Make a Suitable Plan According To Your Production Requirements
2. We Can Customize The Motor Or Other Accessories According To Your Local Requirements
3. We Can Help You Customized Your Own Logo
Working Principles:
Colloid Mill Works Through Different Shapes Of Stator And Rotor, The Stator And Rotor Will Relative Motion At The High Speed Rolling, When The Materials Will Be Grinded At The Self-Possessed, Air-Weight, And Centrifugal Force, When Adjusts The Gap Of The Stator, The Materials Will Bear Powerful Shearing Force, Friction Force, Impact Force And High-Frequency Vibration, The Material Will Be Crushed And Grinded And Mixed Well, Then Can Get The Ideal Products.
The Grinding Chamber Has Three Grinding Distracts: First Class--Coarse Grinding, Second Class—Fine Grinding, Third Class---- Micro Grinding, Can Adjust The Gaps Between The Stator And Rotor To Get The Ideal Products. (Can Recycle The Materials)
