Product Details:
|
| Usage: | Pouch Packing Machine | Material: | Stainless Steel |
|---|---|---|---|
| Capacity: | 5-50 Kg | Filling Accuracy: | ±0.2-0.5% |
| Speed: | 3-6 Bags/min | Voltage/power: | 380V/2.2KW |
| Highlight: | detergent powder packing machine,vacuum sealing machine |
||

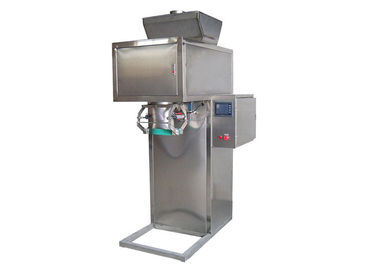

Automatic Plastic Pouch Packing Machine Small Spices Powder Pouch Packing Machine
Pouch packing machine is a new generation of intelligent packaging machine developed by our company. It uses the principle of electronic weighing to weigh and package materials. It adopts fast, medium and slow three-speed screw feeding method with high precision, fast speed and no dust. Pollution and other characteristics. It is suitable for quantitative packaging, conveying and sealing of powder, powder mixture and sheet material.
Products are widely used in the chemical, pharmaceutical, food industry. Such as raw materials, flour, milk powder, starch, sugar, additives, fertilizers, feed, plastic powder, new building materials and other industries.
The unit is mainly composed of four parts: automatic weighing and packaging machine, conveying device, sewing machine and feeding machine. The utility model has the advantages of reasonable structure, beautiful appearance, convenient operation and accurate weighing.
Features
1. The main parts of the pouch packing machine are made of stainless steel, which is suitable for quantitative filling of various products;
2. LCD screen, PLC control technology, easy to operate
3. Class production, Nissan, and cumulative output automatic storage
4. Unique arching technology to prevent material agglomeration overhead during screw feeding
5. Weighing control system is designed according to the requirements of IP54 (dust and water proof)
6. Independent suspension sensor, stable signal transmission, ensuring weighing accuracy
7. Solve the similar products, pneumatic gripper open the bag, drop the powder spillover, turn over the bag phenomenon
The main technical parameters
Model: BZ-D50Z
Applicable materials: Powder, mixture
Measuring range: 5-50 kg
Packing accuracy: ±0.2-0.5%
Packing speed: 3-6 packs / min
Feeding method: Screw feed
Air source pressure: 0.4-0.6Mpa
Air consumption: 1 m3/h
Power / Power: 380V / 2.2KW
Dimensions : 3000 × 1500 × 2500mm
