|Machine Name:||Semi-Auto Two Sides Labeling Machine||Drive Mode:||Stepper Motor|
|Labeling Accuracy:||±1mm||Voltage:||220V 50/60Hz|
|Power:||1.6KW||Products Size:||Length 20-250mm,Width 30-90mm,Height 60-280mm|
automatic round bottle labeling machine,
flat surface label applicator

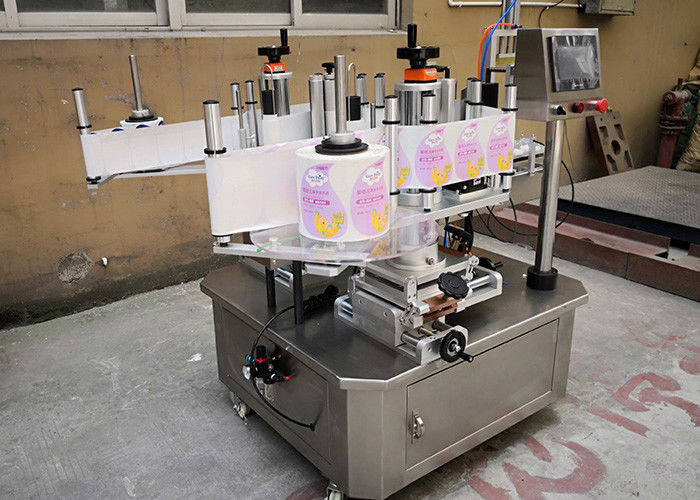

Semi-Auto Bottle Double Sides Labeling Machine Flat Two Sides Labeling Machine
The semi-automatic double-sided labeling machine is a simplified version of the fully automatic double-sided labeling machine. It is mainly used for the production of labeling in small batches. It is necessary to manually place the items and then label them.
|Drive mode||Stepper motor|
|Labeling speed||50-200pcs/min (Depending on the size of the label)|
|Products size||Length 20-250mm,Width 30-90mm,Height 60-280mm|
220V 50/60Hz 1.6KW
1. The core working principle: the sensor detects that the product is in place or the foot sends out the product in-position signal, marks and overwrites the mark, waits for the next labeling signal, and the labeling action of one label is completed.
2. Operation process: put the product → determine the position (equipment detection control or manual control) → labeling and labeling (automatic realization of the equipment) → remove the labeled product.
1. Fast and efficient, double-head design, two labels at the same time, 5-10 times the efficiency of manual labeling.
2. Powerful, it can be used for labeling of side, arc surface and concave plane of various workpieces, which can be used for labeling irregular workpieces;
3. Equipped with a color touch screen, 50 sets of parameters to save the memory function, one-click troubleshooting.
4. The standard is accurate, the stability is high, the PLC+ subdivided stepping motor is used to drive the standard, and the standard is delivered; the discharging mechanism is equipped with the braking function to ensure the tightness of the label, and the label detection is accurate; Prevent the label from shifting left and right;
5. Durable and durable, the circuit is arranged separately from the gas path, and the gas path is equipped with a purifying device to prevent the moisture of the air from invading the electrical appliance and prolonging the life of the equipment; the whole machine is made of high-grade aluminum alloy and stainless steel, and the quality is firm;
6. Easy adjustment, configuration of adjustable front and rear strokes, labeling of different sizes of products, no need to change fixtures repeatedly;
7. Beautiful appearance, using the bottom computer white electric box, with stainless steel and high-grade aluminum alloy, beautiful and generous, improve equipment grade;
8. With manual/automatic 2 kinds of labeling control methods, workers can choose to use the sensor or foot to realize the labeling control according to the needs; set manual and automatic control buttons, and the length of the label can be adjusted freely;
