Rotary Square Bottle Labeling Machine 3 Sides Multi Functional Feature

Rotary Square Bottle Labeling Machine 3 Sides Multi Functional Feature
Rotary Square Bottle Labeling Machine 3 Sides Multi Functional Feature

Large Image :  Rotary Square Bottle Labeling Machine 3 Sides Multi Functional Feature

Product Details:
Place of Origin: CHINA
Brand Name: XUANHUA
Certification: CE
Model Number: ASL-200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton or according to your requirements
Delivery Time: 5-20 working days after received payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets/month

Rotary Square Bottle Labeling Machine 3 Sides Multi Functional Feature

Machine Name: Square Bottle Labeling Machine Label Accuracy: ±1mm
Power: 1.5KW Weight: 200kg
Labeling Speed: 20-200pcs/min (Depending On The Size Of The Label) Label Size: Height 15-200mm , Length 25-300mm
High Light:

automatic round bottle labeling machine


flat surface label applicator

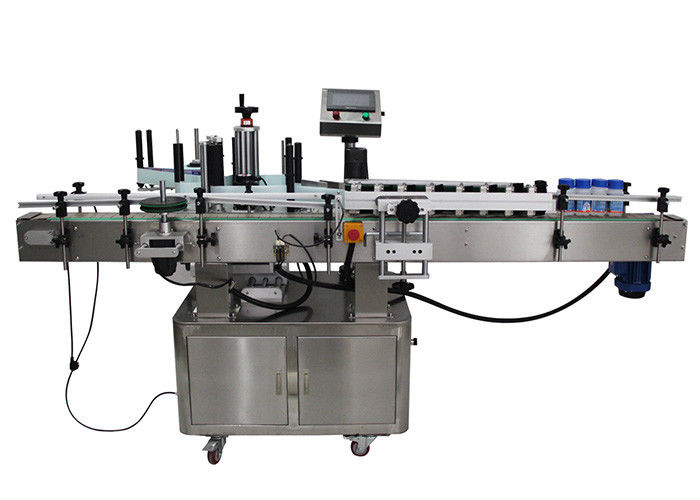

Rotary Pharmaceutical 3-Side Multi Functional 250ml Square Bottle Labeling Machine


Welcome to visit our factory, tell us the product size and label size, we can customize the labeling machine for you.

Our company's labeling machine has a variety of models, according to the operation mode can be divided into manual, semi-automatic and fully automatic, According to the applicable product shape ,it can be divided into round bottle labeling machine, plane labeling machine, square bottle labeling machine,shaped bottle labeling machine, double-sided stickers Standard machine. There are also labeling and coding machines. You can choose the right model for your needs.

Square bottle labeling machine is square bottle automatic labeling machine. The product is automatically labeled as it passes through the conveyor.Square bottle labeling machine is widely used in food and beverage, grain and oil, medicine, daily chemical, chemical and other industries, greatly improving productivity and labeling quality.


Technical Parameters

Model ASL-200
Drive mode Stepper motor
Labeling speed 20-200pcs/min (Depending on the size of the label)
Products diameter 30-120mm
Label size Height 15-200mm , Length 25-300mm
Labeling accuracy ±1mm
Max label roll out diameter 300mm
Label roll inner diameter 76mm
Machine size 2300*550*1600mm
Weight 200kg
Power 220V 50/60Hz 1.5KW



1. The label belt bypass adopts the rectification structure, the label belt is not biased, the labeling position x/y/z three directions and the inclination are adjustable in eight degrees of freedom, the adjustment has no dead angle, the label coincidence degree is high, and the labeling quality is excellent.

2. It can meet the whole-week labeling or semi-circle labeling of round bottles. The labeling between different bottles is simple and easy to adjust.

3. The double-pressure labeling mechanism guarantees the labeling accuracy for the first time and the secondary extrusion type labeling, effectively eliminating bubbles and ensuring that the label is tight at the end of the head

4. Automatic photoelectric tracking, with no material and no labeling, no label automatic correction and automatic label detection to prevent leakage and label waste.
