Product Details:
|
| Machine Name: | Manual Labeling Machine | Label Accuracy: | ±0.5mm |
|---|---|---|---|
| Machine Size: | 65*45*65cm | Labeling Speed: | 25-50pcs/min |
| Products Size: | Ø20mm-120mm | Label Size: | W150*L230 |
| High Light: | double side labeling machine,flat surface label applicator |
||

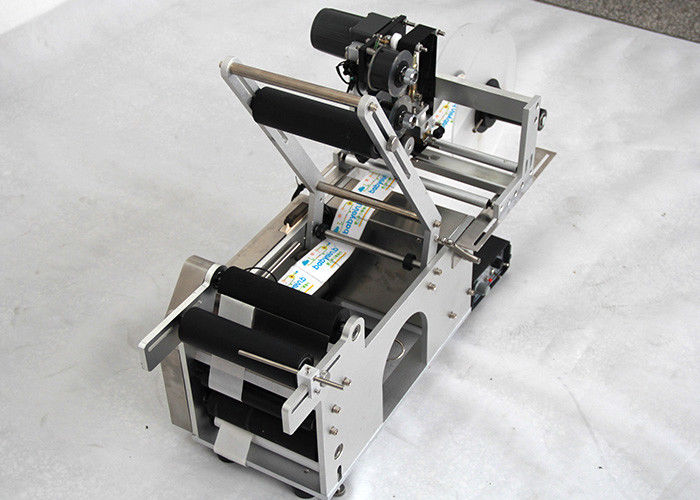

MRL-50D Manual Tin Can Plastic Round Bottle Labeling Machine With Printer
Machine description
Manual Labeling Machine is based on the MRL-50 manual round bottle labeling machine, adding a coding device; directly coding at the same time of labeling, reducing the subsequent operation process; more convenient and efficient.
Machine structure
Paper tray, coding motor, coding machine, pressure bottle swing arm, sensor, bottle roller, delivery roller adjustment screw, delivery roller, stainless steel body, controller, etc.
Machine characteristics
1. Plus coding machine, accurate coding, easy to play while playing, convenient and convenient
2. select high-power motor, the output power is larger, the operation is more stable, and the long-term operation will not cause problems.
3. The paper feeding tray can be adjusted and rotated, and the elastic screws can be adjusted according to actual needs, which is simple and convenient.
4. High-quality paper-receiving wheel, running more smoothly and smoothly, effectively improving work efficiency
5. the power supply has over current protection, beyond the normal scope of application, the fuse will automatically blow the protection machine
6. imported light positioning is more accurate
7. high quality rubber roller, better to fix the bottle
Technical Parameters
| Model |
MRL-50 (Round bottle) |
MRL-50D (Round bottle) |
| Voltage | 220V 50Hz / 110V 60Hz | |
| Power | 120W | 220W |
| Label speed | 25-50pcs/min | |
| Label accuracy | ±0.5mm | ±0.5mm |
| Label roll inner diameter | ≥75mm | |
| Max label roll out diameter | ≤250mm | |
| Products size | Ø20mm-120mm | |
| Wide of label | W150*L230 | W150*L230 |
| Printer | NO | YES |
| Machine size | 65*45*45cm | 65*45*65cm |
| Gross weight | 25kg | 35kg |
