Product Details:
|
| Machine Name: | Wheat Flour Milling Machine | Voltage: | 380V / Customized |
|---|---|---|---|
| Power: | 7.5 KW | Capacity: | 300Kg |
| Material: | Stainless Steel | Advantage: | High Efficiency And Safety |
| High Light: | peanut butter production line,food smoking equipment |
||

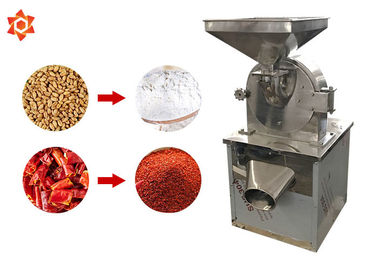

MF-400 Electric Flour Milling Machine Wheat Flour Milling Machine
Working principle:
The mechine uses the relative movement between the active fluted disc and the fixed fluted disc to impact,grind and crush the target materials,The size of granules can be achieved by changing of the screen.The mechine has the features of easystructure,solid,stable running and good efficiency.The crushed material is discharged directly from the grinding chamberof the main frame.In additional,the whole machine is made of stainless stell,with smooth inside walls to avoid power accumulation on the inside walls.
Technical Parameters Of MF-400 Electric Flour Milling Machine Wheat Flour Milling Machine :
|
Model |
MF-200 |
MF-300 |
MF-400 |
MF-500 |
|
Fineness(Mesh) |
10-200 |
10-200 |
10-200 |
10-200 |
|
Power |
380V , 2.2Kw |
380V , 5.5Kw |
380V , 7.5Kw |
380V , 11Kw |
|
Capacity(Kg/h) |
30-120 |
60-200 |
80-300 |
100-500 |
|
Material |
304 Stainless Steel |
|||
|
Dimension(mm) |
480*520*1040 |
750*600*1260 |
780*700*1350 |
800*900*1550 |
|
Weight(Kg) |
80 |
180 |
260 |
320 |
Advantage:
1 .The machine is designed according to GMP standards, and fully made of stainless steel.
2 .Strong crushing ability, low energy consumption, relatively small product
3 .The machine with simple structure, high efficiency ,low power consumption and easy cleaning. It is the ideal equipment to crushing the materials.
4 .We have different models, both small models for large and medium institutions, hospitals laboratory use,and also could produce large-scale assembly line equipment.
