Product Details:
|
Usage: | Flour Milling Machine | Size: | 480*520*1040 Mm |
---|---|---|---|
Power: | 5500 W | Capacity: | 500 Kg |
Weight: | 80 Kg | Fineness: | 10-200 Mesh |
High Light: | food smoking equipment,high capacity food dehydrator |

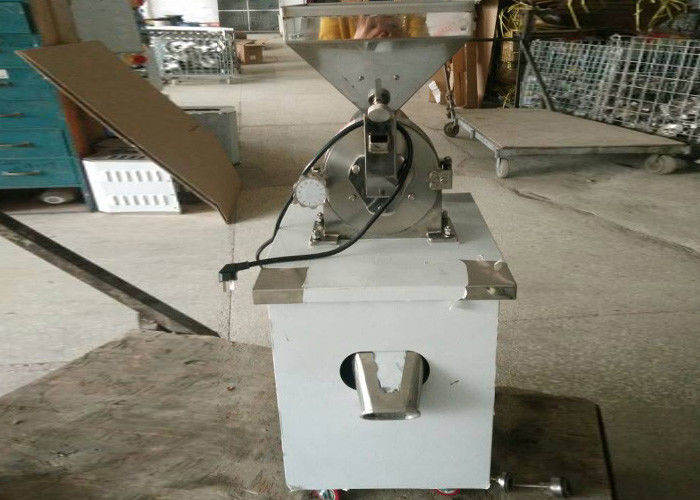

Home Maize Flour Milling Machine Plantain Cassava Wheat Flour Milling Machine
Flour milling machine is composed of a base, a motor, a discharge port, a crushing chamber, a fixed toothed disc, a movable toothed disc, a ring screen, a shaking device, and a discharge port. The fixed sprocket and the movable sprocket are arranged in a concentric circle with unequal diameters to pulverize the material.
Flour milling machine is the most commonly used pulverizing equipment for food enterprises, chemical enterprises and pharmaceutical companies. It can be used to pulverize chemical raw materials, whole grains, Chinese and Western medicinal materials, etc. It can crush tens of thousands of materials. Flour milling machine can be equipped with cooling equipment to smash heat sensitive materials, such as Chinese medicine dipping. Paste, extract, sugar, resin materials, no melting and deterioration during the pulverization process, and equipment can also add dust removal devices, automatic discharge devices, and quantitative feeding devices to improve the environmental hygiene of the workshop and the labor intensity of workers. Crushing fineness: 10-120 mesh (adjustable), the output per hour can reach 30-500kg (the crushing materials and fineness requirements are different), the equipment material is made of 304 stainless steel, and the sealing parts and material contact parts are all food hygiene grade. The material is made in full compliance with food hygiene standards and pharmaceutical GMP hygiene standards.
Parameter
Model | MF-200 | MF-300 | MF-400 | MF-500 |
Fineness(Mesh) | 10-200 | 10-200 | 10-200 | 10-200 |
Power | 380V , 2.2Kw | 380V , 5.5Kw | 380V , 7.5Kw | 380V , 11Kw |
Capacity(Kg/h) | 30-120 | 60-200 | 80-300 | 100-500 |
Material | 304 Stainless Steel | |||
Dimension(mm) | 480*520*1040 | 750*600*1260 | 780*700*1350 | 800*900*1550 |
Weight(Kg) | 80 | 180 | 260 | 320 |
