Product Details:
|
| Machine Name: | Box Paging Labeling Machine | Drive Mode: | Stepper Motor |
|---|---|---|---|
| Labeling Accuracy: | ±1mm | Voltage: | 220V 50/60Hz |
| Power: | 1.2KW | Products Size: | Length 40-400mm,Width 40-200mm,Height 0.2-150mm |
| High Light: | automatic round bottle labeling machine,flat surface label applicator |
||

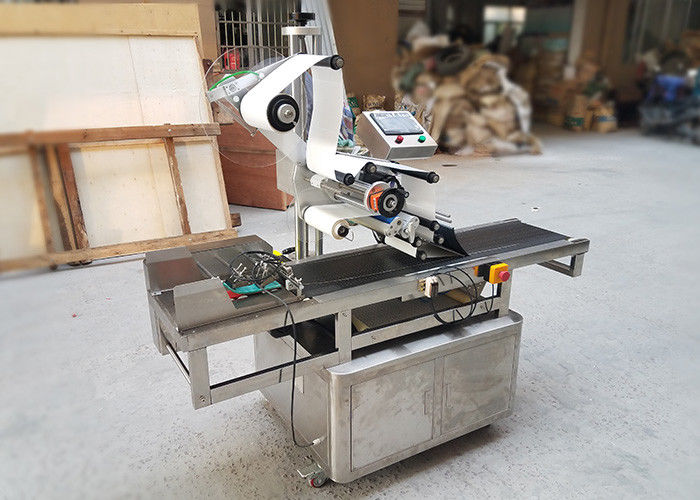

Automatic Hang Tag Paging Labeling Machine Cardboard Box Paging Labeling Machine
Product description
Box Paging Labeling Machine is mainly used for automatic packaging of plastic bags, paper, cards, cartons, etc., and then accurately attached stickers. (can be attached to anti-counterfeit labels, logos) and so on.
How the machine works
After the material enters the labeling area, the object fiber detects the object, transmits the photoelectric signal to the PLC, and the output signal is transmitted to the stepping motor after being processed by the PLC, and the label is taken out by the stepping motor, and the label is peeled off from the peeling plate and The front end of the label is pasted on the surface of the object to be attached, and the bottom paper is rewinded; the label is attached to the object by the brushing brush, and when the labeling electric eye detects the label gap, the label continues to extend forward to the pre-marking length according to the setting, and the label is sent. The stepper (servo) motor stops, the bidding stops; the sticker enters the labeling device/successor device, the label is flattened by the sponge roller, and the labelled object is transported by the labeling machine. A process.
Machine characteristics
It is a special labeling mechanical equipment customized according to customer requirements. It adopts computer fiber control, synchronous tracking, and the bidding is controlled by stepper motor or servo motor. It automatically detects the size of the sticker and the label, and automatically adopts microcomputer control and large touch type. The LCD panel, which displays and contains dozens of memory devices, is a modern and advanced mechatronic device.
Box Paging Labeling Machine can be used for distribution (receiving) trays when using single machine, or it can be directly connected to the production line for excellent and reliable working performance.
Box Paging Labeling Machine can also be equipped with a printer to complete the label printing production date batch number.
Technical Parameters
Model: AFL-300
Drive mode: Stepper motor
Labeling speed: 30-150pcs/min ( s on the size of the label)
Products size:Length 40-400mm, Width 40-200mm, Height 0.2-150mm
Label size:Length 6-150mm, Width 20-180mm
Labeling accuracy: ±1mm
Machine size: 2900*900*1400mm
Weight: 250kg
Power: 220V 50Hz 1.2KW
