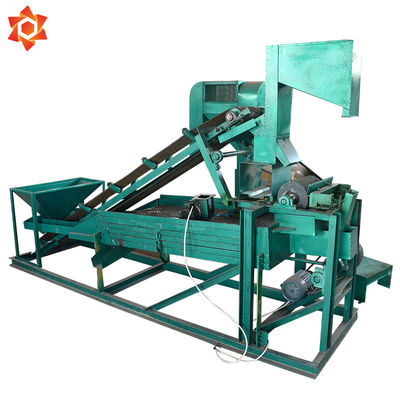

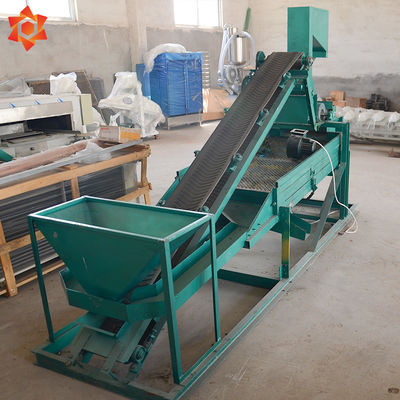

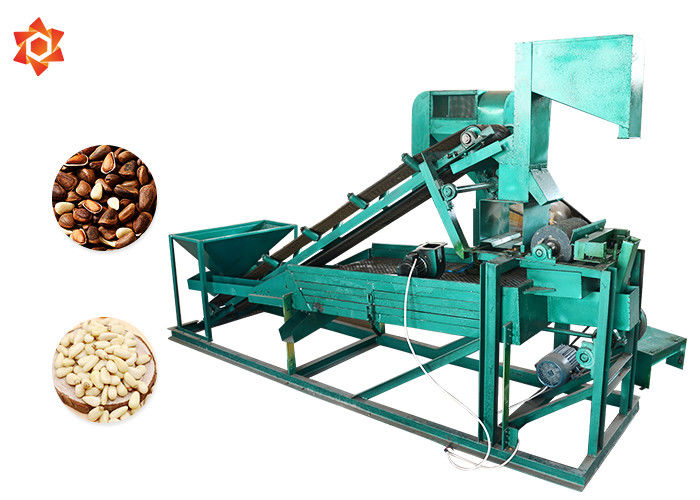

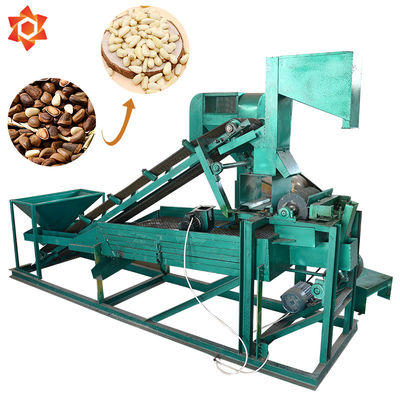

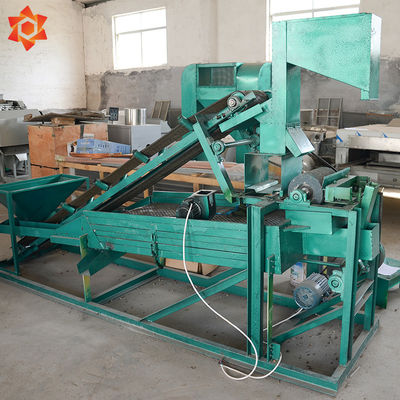

High Efficiency Electrical Nut Shelling Machine 460kg Weight 220v / 380v

Our company has professional and mature production experience of pine nut processing line.

Pine nut processing procedures:

1, pineal thresher, 2 removal of impurities, 3, according to size classification, 5, shelling, 6,

shell and kernel separation, 7, drying, 8, peeling, 9, baking (or other deep processing)

Description of product features and functions:

1. The new structure improved by our company for many times has good mechanical stability and low noise;

2, the machine structure is compact, easy to assemble and disassemble, easy maintenance;

Higher shucking rate, less broken grains, higher precision, 98% cycle shucking rate, 96% integrity rate,the machine will adjust itself according to the material size, the design

structure, the circulation shelling,automatically screened unhulled and

hulled ,feeding,shelling again, shell and kernel are separated from different material discharges.

This machine is suitable for large, medium and small processing plants.

TECHNICAL PARAMETER 40-50kg/h capacity electrical nut sheller pine nuts shelling machine:

The pine nut sheller can be used alone or in combination with a production line.

When using a single machine: first take off the large pine nuts, then adjust the clearance and then take off the small pine nuts,cycling(re-shelling of the unshelled),until all sizes of pine nuts are shelled.

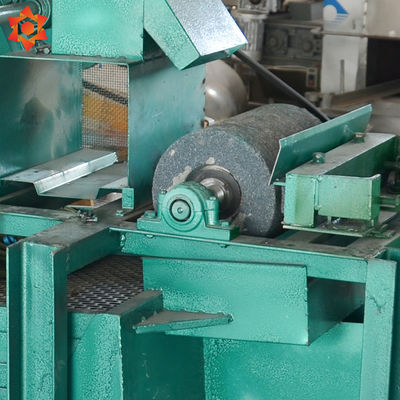

The gap between the rolls should be 1-1.5 mm smaller than the size of the loose pieces.

For example, the size of pine nut raw material is 15 mm in diameter of large pine nuts, 12 mm in diameter of medium pine nuts, and 9 mm in diameter of small pine nuts. It is adjusted according to the raw material in turn: the first roll release clearance is 14 mm, the second roll release clearance is 11 mm, the third roll release clearance is 8 mm, and the third roll release clearance is 8 mm. In practical application, the clearance should be adjusted according to the material to achieve the best effect of sheltering and non-crushing. At the same time, each level of pine nuts for dehulling, need to replace the corresponding screen.
