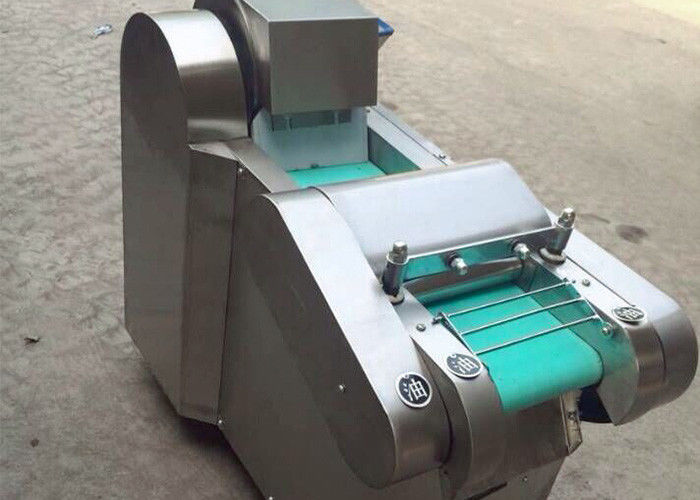

Electric Vegetable Processor Machine , Commercial Vegetable Cutting Machine

Universal Electric Vegetable and Fruit Cutter Green Beans Mango Potato Chip Cutter

The Fruit cutter is widely used in the cutting and processing of various roots, leafy vegetables, kelp, soy products, etc. It can process various shapes of pieces, blocks, dices, diamonds and curves. The Fruit cutter is easy to operate, easy to maintain, and adaptable. It is an ideal vegetable processing equipment.

Parameter of Fruit cutter

Production capacity: 200-1000kg / h (processed products and shapes)
Motor: 1.5kw
Slice rotation number: 330r/min
Slice thickness: 2-10mm
Number of vertical knives: 155-310 times / min
Cut vegetables length: 1-30mm
Dimensions: 1300*600*1050mm

Operation
1. Try cutting before work, observe whether the specifications of the cut vegetables are the same as the required specifications, otherwise the slice thickness or the length of the cut vegetables should be adjusted, and the normal work should be carried out after meeting the requirements.
2. Intelligent cutting machine installation vertical knife: put the vertical knife on the fixed knife plate, the cutting edge is in parallel contact with the lower end of the fixed knife plate, the fixed knife plate pin is on the tool holder, the cutter nut is tightened, and the fixed knife plate is removed. can.
3. Other cutting machine installation vertical knife: first turn the adjustable eccentric wheel to make the knife holder go to the bottom dead center, then lift the knife holder up 1/2 mm, so that the vertical knife is in contact with the conveyor belt, tighten The nut fastens the vertical knife to the tool holder. Note: The height of the tool holder can be grasped according to the vegetables being cut. If the elevated height of the overhead is small, the vegetables may have a knife. If the elevated height of the overhead is too large, the conveyor belt may be cut.
4. Cut vegetable length adjustment: Observe whether the length value displayed on the control panel matches the required length. Press the increase button when increasing the length and the decrease button when reducing the length. Other cutting machine adjustment: turn the adjustable eccentric wheel, loosen the connecting rod fastening screw, cut the filament to move the fulcrum, from the outside to the inside; when cutting the thick wire, you can move the fulcrum, from the inside to the outside, adjust the tightening and adjust Screw.
5. Slice thickness adjustment According to the structure of the slicing mechanism, select the appropriate adjustment method. Note: The gap between the blade and the dial should be 0.5-1 mm, otherwise the quality of the cutting will be affected.
