Product Details:
|
Machine Name: | Bottom Surface Labeling Machine | Label Accuracy: | ±1mm |
---|---|---|---|
Machine Size: | 650*450*700mm | Labeling Speed: | 25-50pcs/min |
Products Size: | 10-120mm | Label Size: | W10-120mm |
High Light: | automatic round bottle labeling machine,flat surface label applicator |

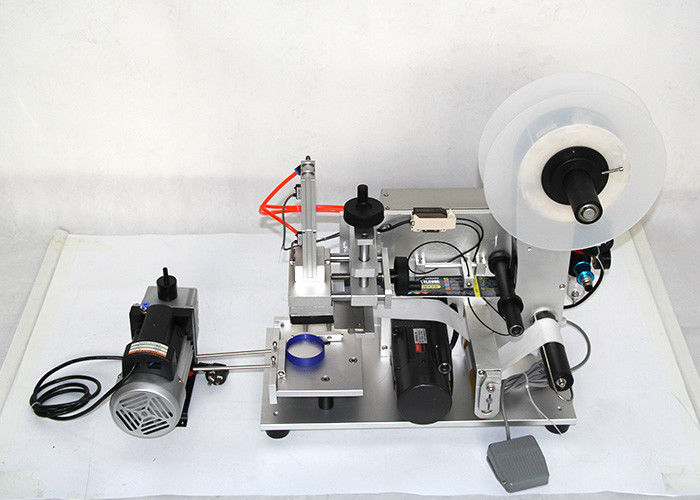

Auto Bottle Boxes Bottom Surface Labeling Machine Label Applicator Machine
Product description
This is a semi-automatic plane labeling machine, suitable for self-adhesive labeling of various items, manual storage, automatic labeling, wide range of labeling, one machine can basically paste all the products that require labeling. The standard is especially suitable for labeling in which the batch size is small, the variety is varied, and the specifications are variable, which can greatly improve the labeling production efficiency and reduce the equipment investment cost;
Widely used in cosmetics, food, toys, daily chemicals, electronics, medicine, plastics, printing and other industries, such as shampoo flat bottles, packaging boxes, cosmetic flat bottles, bottle caps, plastic shells, SD cards, batteries, etc. , circumferential, concave, convex or other attached labels.
Technical Parameters:
Applicable product range: width 10-120mm
Applicable label range: width 10-120mm
Production capacity: 20 to 50 pieces (depending on the label size and manual operation speed)
Rated voltage: 220V/50Hz
Machine power: 120W
Dimensions: 650*450*700mm
Gas source: 0.5-0.8MPa
Machine weight: 26Kg
Features
1. With electric eyes, the detection sensitivity of objects and labels is high.
2. The labeling accuracy is high, and the deviation between the head and the end of the label is small.
3. desktop design, streamlined structure, small size, powerful.
4. With synchronous belt traction, the mechanical stability is greatly improved.
5. widely used in cosmetics, beverages, food, medicine and other industries, greatly improving productivity and labeling quality.
working principle
The sensor detects that the product is in place or the foot switch sends a product in-position signal, the suction head of the suction label drops the label and overwrites the label, and then returns to the original position to adsorb the next label, waiting for the next labeling signal, and attaching the label to the label. carry out.
Operation process: put the product -> determine the position (equipment detection control or manual control) -> labeling and labeling (automatic realization of the equipment) -> remove the labeled product.
