|Product Name:||Oil Bottle Filling Machine||Voltage:||380V / Customized|
|Scope Of Application:||Paste/Liquid/Water||Filling Speed :||5-25Bottles/min|
semi automatic liquid filling machine,
semi automatic bottle filling machine

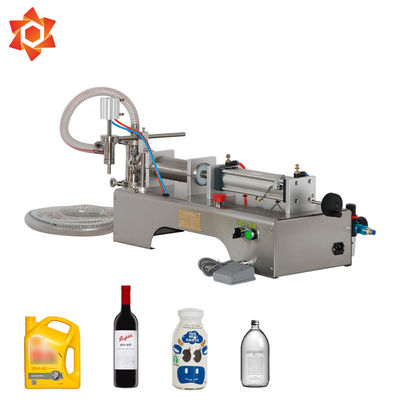

GZ-DY Coconut Essential Olive Mustard Oil Glass Milk Bottle Filling Machine
Scope of application
Oil Bottle Filling Machine is specially designed for small-volume filling. The materials can be sauces, pastes, liquids, etc., and are suitable for a wide range of applications.
for lotion, care solution, oral liquid, hair lotion, hand soap, lotion, disinfectant, liquid foundation, antifreeze, shampoo, eye wash, nutrient solution, injection, pesticide, medicine, wash clean , shower gel, perfume, cooking oil, lubricants and liquid filling in special industries
Working principle and performance
Working principle: Oil Bottle Filling Machine is a semi-automatic piston filling machine. A piston is driven by the cylinder to extract and discharge the material, a check valve is used to control the flow of the material, and a reed switch is used to control the stroke of the cylinder to adjust the filling amount.
Performance: The semi-automatic piston type single-head liquid filling machine produced by our company is based on the series of filling machines produced by our company. It introduces foreign advanced filling machine technology and carries out further transformation and innovation. Its structure is more simple and reasonable. High in degree and easy to operate, it is an ideal choice for your company's filling paste.
1. It can be filled with paste and liquid. The machine is made of stainless steel. There is no corner in the pneumatic three-way valve, easy to clean;
2. There is a standard metering scale, the filling volume and filling speed can be adjusted;
3. There is a counting device, which can automatically calculate how many times to fill;
4. The contact parts of the materials are made of stainless steel and meet the requirements of GMP;
5. Pneumatic components are used Taiwan's AirTac pneumatic components
6. The seal is made of silicone rubber (wear, high temperature, acid and alkali, corrosion resistance), fluororubber (wear, strong acid and alkali, strong corrosion)
7. The filling head is provided with anti-drawing, anti-drip device and lifting and filling device, and the filling nozzle is provided with two sizes;
8. Filling speed is fast, can be filled 30 times per minute, taking 500ml as an example, the filling accuracy is positive and negative ≤ ± 1%.
