Product Details:
|
Voltage: | 220v/380v | Power: | 3-5KW |
---|---|---|---|
Diameter of cylinder: | 205mm | Cell size: | 4.9mm 5.1mm 5.3mm 5.4mm |
Roller length: | 350mm,450mm,650mm,750mm | Roller diameter: | 205mm |
Dimension: | 2600*1000*1200mm | Capacity: | 40-52 Kg/hour |
Highlight: | honey bee machine,beeswax foundation machine |

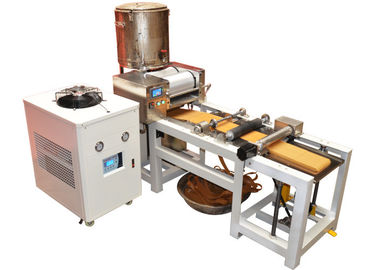

CC-Q350 automatic bee keeping beekeeping tools used honey bee beekeeping equipment
Product Description
1. The beeswax foundation machine / beeswax comb foundation machine is a type of manual, electric or full automatic beeswax machine, with a roller width of 195 /250 /350 /450 /500 /650 /750 mm or as your required.
2. Beeswax foundation machine is a type of beeswax foundation machine with a roller.The surface of these rollers has a honeycomb cell designed which embosses the comb foundation sheet.The beeswax embossing machine is used for producing comb foundation and allowing the bees to build up their home themselves .
3. The main structure of the beeswax foundation machine consists of two aluminum alloy rollers fixed horizontally close together in a cast iron frame.
4. Uses the advanced machine engraving technology.overcomes the problem that spacing is dissimilitude and foundation receive rate low. high precision cell size.
5. Featured by no lead included, high precision, durable use, can produce different kind of beeswax sheets. The beeswax foundation sheets it produced are hard compact and neatly.
Technical Parameters
Voltage(v) |
220-240v/380v |
Power(kw) |
3-5kw |
Diameter of cylinder(mm) |
205mm |
Cell Size(mm) |
4.9mm 5.1mm 5.3mm 5.4mm |
Roller Length(mm) |
350mm,450mm,650mm,750mm |
Roller diameter |
205mm |
overall Size: |
2.6m*1m*1.2m |
Capacity |
40-52 kg/hour |
What Can We Do For You?
1. We Can Make a Suitable Plan According To Your Production Requirements
2. We Can Customize The Motor Or Other Accessories According To Your Local Requirements
3. We Can Help You Customized Your Own Logo
Working Samples
