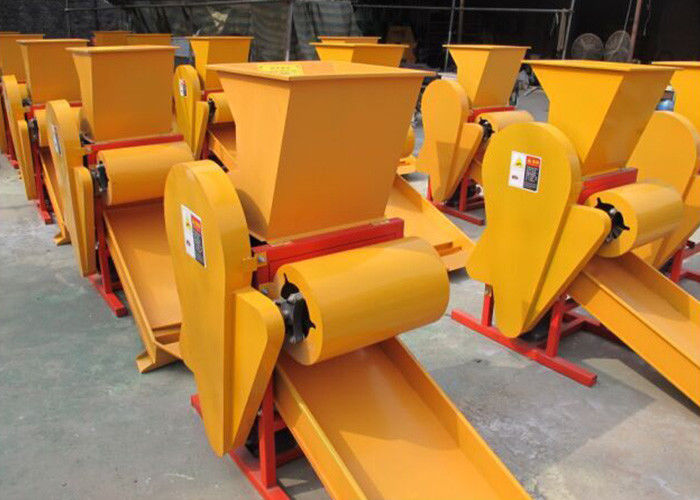

100kg Small Peanut Shelling Machine 98% Husking Rate Steel Raw Material

98% Husking Rate Small Groundnut Peanut Sheller Machine Peanut Processing Machine

Technical Parameters

Peanut Sheller Machine is a professional equipment for shelling peanuts. It combines peanut shelling and shell kernel separation.

Peanut Sheller Machine parameters
Production efficiency : 400-500 kg / hour
Peeling rate : >99%
Breakage rate : <0.5%
Spindle transfer rate : 260-300 rev / min
Machine weight : 100 kg
Supporting power : 2.2 kW (four-stage 100 rotor)

Peanut Sheller Machine Description
The Peanut Sheller Machine has a frame, a fan, a rotor, a single-phase motor, a screen (two kinds of sizes), a feeding hopper, a vibrating screen, a V-belt wheel and a transmission triangle belt. After the machine is in normal operation, the peanuts are quantitatively, uniformly and continuously put into the hopper, and the peanut shell is broken under the repeated impact, friction and collision of the rotor. Peanut kernels and broken peanut shells pass through a screen with a certain pore size under the rotating wind pressure and blow of the rotor (the peanuts are first threshed with a large-hole screen, and the small peeled fruit after the selection is replaced with a small-hole sieve for the first Secondary shelling) At this time, the peanut shell and the pellet are subjected to the blowing force of the rotating fan, and the light-weight peanut shell is blown out of the machine body, and the peanut grain is filtered through the sieve to achieve the purpose of cleaning.
