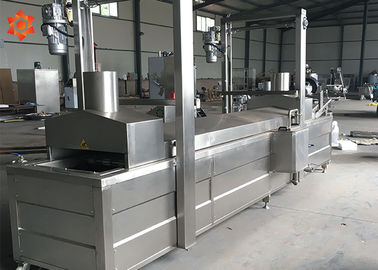

Onion Potato Continuous Electric Deep Fryer Machine 380V / Customized Voltage

Product description of Onion potato continuous mini fryer basket chicken broaster pressure fryer:

The main body of this machine is made of SUS304 stainless steel. The electric heating method will not cause damage to the oil quality and prolong the replacement period of the oil frying. The machine realizes the functions of automatic loading, automatic discharging and automatic stirring. Prevents workers from the danger of burns during manual operation. The oil filter tank equipment adopts 3mm stainless steel plate, built-in three layers of filter screens, the first layer at the upper end is coarse filtration, and the second layer and third layer are fine filtration, which makes the filtering effect better.

The continuous fryer is composed of a feeding port, a pan body, a discharging port, a transmission system, an exhaust fume system, a lifting system, an oil storage tank, an oil filtering system, and an electronic control system.

Equipment composition:

First, the body part:

1. The pot body uses 3㎜ stainless steel plate, and the bottom plate uses 3mm thick stainless steel plate, the material is 304.

2. The outer shell of the pot is made of 1.2mm stainless steel and the material is 304. Cold-formed

3. After the pot is welded, perform a water leak test to ensure that it will not leak.

4. The main body of the pot is made of stainless steel and other materials that conform to the food industry.

5. An aluminum silicate board insulation material is installed between the pot body and the shell. The thickness is 50mm.

Second: Machine support part:

1. The transmission speed of the conveyor belt is controlled by frequency conversion.

2. Conveyor belt parameters: The center distance of the conveyor belt is 600mm, the wire pitch is 1.2mm, the pitch is 8mm, the string axis is 8mm, the wheelbase is 100mm, and the chain pitch is 25.4mm

3. The mesh belt bracket is made of 3mm stainless steel cold-formed butt joint. The material is 304.

4. The fume hood and mesh belt bracket can be lifted independently for easy cleaning.

5. The bearings and bearing blocks are made of stainless steel.

6, 80mm gap between the upper and lower mesh belts for frying space.

Third, the fume exhaust part:

1. The exhaust fume hood is cold-formed with 2mm stainless steel plate, and the overall pointed structure is convenient to exclude oil fume. The exhaust fume hood and the exhaust fume pipe are provided with a condensate drainage structure.

2. The front and rear heads of the hood are designed to exhaust oil fume, with a diameter of 260mm.

Fourth, the promotion part:

Lifted by worm gear reducer. Two sets of lifting can be used to lift the fume hood individually or together with the mesh belt bracket to facilitate the cleaning and maintenance of the mesh belt and the fume hood.

Fifth. Electric control part:

The electric control cabinet is made of stainless steel with a thickness of 1.5mm and a material of 304 stainless steel. It is equipped with an emergency stop switch and a total leakage protection switch. Leakage protection switch, temperature control instrument, inverter, sensor of main control parts. The operation is simple, intuitive and convenient. Equipped with emergency stop switch, total leakage protection switch, relay, over-temperature alarm, the sensor will automatically cut off the power when the sensor fails, and alarm. (The equipment itself is not equipped with main transmission cables other than equipment, pipelines for oil and gas pipelines, etc.)

Sixth. Oil storage tank:

The external dimensions of the oil storage tank are φ1200 × 2600mm. The equipment adopts 3mm stainless steel plate. A cover plate is added on the upper end of the equipment to facilitate the cleaning of the oil tank. The drain ports and valves are made of stainless steel.

Seven, oil filter tank:

The external dimensions of the oil filter tank are φ600 × 800mm. The equipment uses 3mm stainless steel plate with three layers of filter screens. The first layer at the upper end is coarse filtration, and the second layer and third layer are fine filtration, which makes the filtering effect better. There are two pumps, and when one is overhauled, the other keeps the equipment working.
