Seimi Automatic Flat Label Applicator Flat Surface Bottle Label Applicator

Seimi Automatic Flat Label Applicator Flat Surface Bottle Label Applicator
Seimi Automatic Flat Label Applicator Flat Surface Bottle Label Applicator

Large Image :  Seimi Automatic Flat Label Applicator Flat Surface Bottle Label Applicator

Product Details:
Place of Origin: CHINA
Brand Name: XUANHUA
Certification: CE
Model Number: SPL-60
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton or according to your requirements
Delivery Time: 5-10 working days after received payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets/month

Seimi Automatic Flat Label Applicator Flat Surface Bottle Label Applicator

Description
Machine Name: Flat Surface Label Applicator Label Accuracy: ±1mm
Power: 120W Weight: 26Kg
Products Size: 10-120mm Label Size: W10-120mm
High Light:

automatic round bottle labeling machine

,

flat surface label applicator

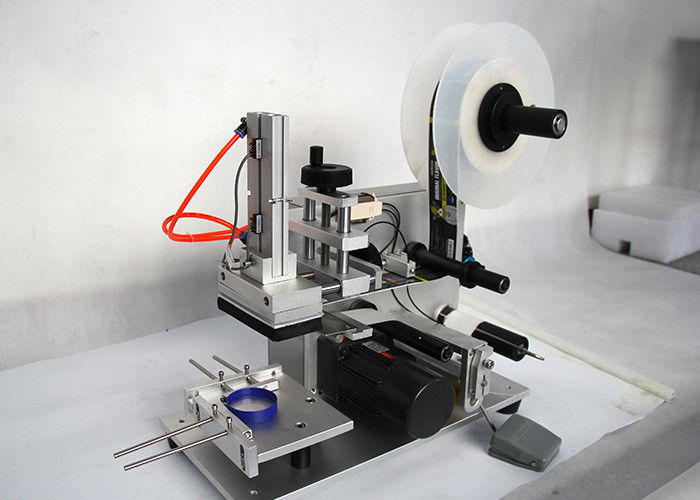

Seimi Automatic Flat Label Applicator Flat Surface Bottle Label Applicator



Product Name: Semi-automatic plane labeling machine



Flat Labeling Machine Technical Parameters

Model SPL-60 SPL-60D
Labeling speed 25-50pcs/min
Products size 10-120mm
Wide of label 10-120mm 10-120mm
Labeling accuracy ±1mm ±1mm
Max label roll out diameter 250mm
Label roll inner diameter 75mm
Machine size 650*450*700mm 650*450*850mm
Weight 26kg 36kg
Power 110V 60Hz/220V 50Hz 120W 110V 60Hz/220V 50Hz 220W
Printer NO

YES



Features
1. Adapt to more products
The equipment adopts the method of suction and labeling, and the labeling accuracy is ±0.5mm; it can be used for various regular plane labeling, and at the same time, various irregular workpieces such as arc surface, concave surface and convex surface can be realized by changing the labeling mechanism or jig. Standard


2. Wide range of applications
Metal, glass, plastic, PET and other materials can be adapted; self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, QR codes, etc. can be adapted;



3. Sticking standards, high stability
Adopt PLC+ subdivided stepper motor to drive the standard and send the standard; secondly, the brake mechanism is used to ensure the label tension and the stop label is more accurate; the label bypass correction mechanism can prevent the label from shifting left and right; double clamp type Coding, not easy to slide, to ensure the accuracy of the bidding;



4. Powerful, versatile configuration
The cylinder is equipped with a floating universal joint for a longer life;
Fine-tuning the fixture base, easy to adjust, can be adjusted freely from front to back, left and right, easy and efficient operation;

With pedal/auto two labeling methods:


5. Preset the mounting hole of the coding machine to facilitate the installation of optional functions in the future;
The actions such as stripping, labeling, labeling, labeling and labeling are automatically completed, and the labeling process can be completed by manual loading and unloading.



6. Measuring and measuring electric eye adopt imported first-line brand sensor
Sensitivity of detection, stable performance, and long-term use;



7. Excellent material selection and excellent quality
The main components of this model are made of stainless steel and high-grade aluminum alloy plates. They are rigid and non-deformable, non-rusting and beautiful. At the same time, they are manufactured according to IS09001 quality management system, pay attention to quality and user experience, and meet GMP manufacturing standards.



8. Optional features and components:
The coding machine and the hot coding machine can print the production date, the product expiration date, the production batch number, etc., and improve the production efficiency;
Universal sensor, ordinary sensor can not detect transparent label, must choose special transparent label to detect the use of electric eye;
The inkjet printer can be matched with the mainstream inkjet printer on the market, and the code is printed at the specified position of the label;
