|Product Name:||10ml Bottle Labeling Machine||Label Accuracy:||±0.5mm|
|Voltage:||110V/220V||After-sales Service Provided:||Online Technical Support Or On-site Service|
|Products Size:||Ø20mm-120mm||Label Size:||W150*L230|
double side labeling machine,
flat surface label applicator

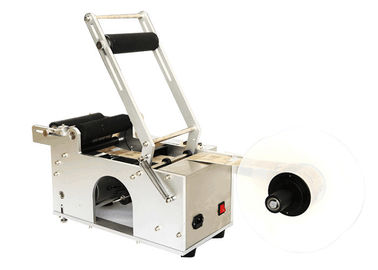

Mini 10ml 15ml 30ml Essential Oil 60ml e Liquid Bottle Labeling Machine
Uses: Automatically attach self-adhesive labels and self-adhesive films on the circumferential surface and conical surface of the product;
Function: Improve the labeling efficiency of product labeling and filming, accurate positioning, good quality and high stability; avoid manual labeling, low film efficiency, skewing, blistering and wrinkling, irregular placement position, etc. Series of problems; effectively reduce product costs, improve product logo aesthetics, and increase product competitiveness.
Scope of application
1. Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.;
2. Applicable products: Products that require labeling on the circumferential surface and conical surface;
3. Application industry: widely used in food, toys, daily chemicals, electronics, medicine, hardware, plastics, printing and other industries;
4. Application examples: oral liquid round bottle labeling, vial labeling, conical pen lid labeling, shampoo bottle labeling, small taper cosmetic bottle labeling, etc.
1. The labeling is flat, no wrinkles, no bubbles, high precision and good stability;
2. Powerful, through the knob control, it can realize the circumferential positioning labeling (labeling of the circumferential surface specified position) and the circumferential non-positioning labeling;
3. Applicable product range, can meet the circumferential positioning and non-positioning labeling within the range of 20-120mm in diameter;
4. The equipment is easy to use, easy to adjust, and can be used and adjusted skillfully for simple training of new employees;
5. The transmission parts are fully wrapped to avoid abnormalities and safer to use;
6. The structure is small, the floor space is small, and the equipment is moved and placed;
7. The mechanical adjustment part of the structural combination and the clever design of the label winding make the conversion adjustment and label winding between different products simple and time-saving;
8. With automatic / semi-automatic two kinds of labeling control methods, workers can choose to use the sensor or foot to achieve labeling control as needed;
9. The main material of the equipment is stainless steel and aluminum alloy, the overall structure is firm and beautiful;
10. With fail-stop function, production counting function;
Optional functions and components: 1 hot coding function 2 circumferential circumferential positioning function 3 other functions (customized according to customer requirements).
The core working principle: the sensor detects that the product is in place or the foot sends out the product in-position signal, sends a label at the appropriate position to the predetermined position of the product, completes the labeling and labeling during the rotation of the product, and the label is pasted and covered. On the product, the attaching action of a label is completed;
Operation process: put the product → press the handle → label (automatically realized by the device) → take out the labeled product.
The following are standard model technical parameters, other special requirements and functions, can be tailor-made.
Model: MRL-50 (round bottle)
Labeling accuracy: ±0.5mm (excluding product, label error)
Labeling speed: 25-50pcs/min (related to product size)
Applicable product size: 20mm ≤ product diameter ≤ 120mm
Applicable label size: W150*L230
Machine size: 650*450*450 mm
Applicable power supply: 110/220V 50/60HZ
Machine weight: 25Kg
