|Application:||Powder Grinder Machine||Machine Size:||750*600*1260 Mm|
|Machine Power:||5.5 KW||Material:||304 Stainless Steel|
|Voltage:||380V||After-sales Service Provided:||Online Technical Support Or On-site Service|
food smoking equipment,
high capacity food dehydrator

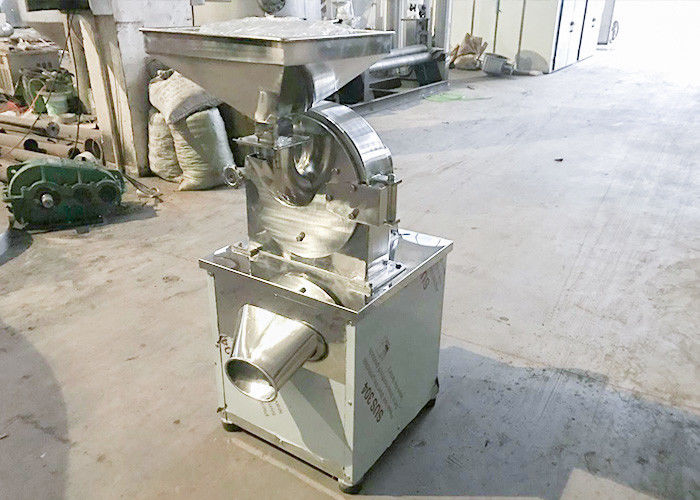

MF-200 Commercial Pepper Grinder Machine Coconut Dry Leaf Powder Grinder Machine
The Powder grinder machine by our company is made of 304 stainless steel and is equipped with national standard motor. It is mainly used for chemical materials, Chinese medicinal materials containing roots, branches and block materials, various low-oil foods, grains and grains. Some other hard, brittle materials. Powder grinder machine utilizes the relatively high-speed operation between the movable toothed disc and the fixed toothed disc, so that the pulverized material is pulverized by the impact of the sprocket, the friction and the collision of the materials with each other.
Powder grinder machine adopts a wind wheel type high-speed rotary knife. The fixed knife is used for impact, shearing and grinding. It not only has good pulverizing effect, but also generates a strong air flow in the machine cavity when pulverizing, so that the heat of the crushing chamber and the finished product flow out from the screen together. The pulverization fineness can be determined by changing the screen.
The unit uses the relative movement between the movable toothed disc and the fixed toothed disc to make the material crushed by the impact of the toothed disc, the friction and the impact of the materials on each other, and the crushed material automatically enters the collecting bag. The machine is designed according to the "GMP" standard, all made of stainless steel, and there is no dust flying during the production process. And can improve the utilization of materials and reduce the cost of enterprises.
|Spindle speed||4500 r/min||3800 r/min||3400 r/min||2800 r/min|
|Feed material size||6 mm||10 mm||12 mm||15 mm|
|Fineness||60-120 Mesh||60-120 Mesh||60-120 Mesh||60-120 Mesh|
|Motor Power(kw)||4 KW||5.5 KW||11 KW||15 KW|
|Weight (kg)||250 Kg||320 Kg||550 Kg||680 Kg|
Contact Person: Amos
