|Name:||Powder Packing Machine||Material:||304 SS|
|Production Capacity:||4-10 Kg||Packaging Accuracy:||±0.2-0.5%|
|Packing Speed:||4-10 Bags/min||Power:||380V/1.5KW|
detergent powder packing machine,
vacuum sealing machine

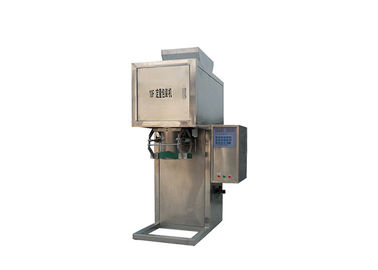

Automatic Milk Powder Packing Machine Detergent Washing Powder Packing Machine
GZ-D series packaging machine is a new generation of intelligent electronic weighing packaging machine developed by our company, which is suitable for quantitative filling of single large weight. The utility model has the advantages of reasonable structure, stable operation, convenient operation and high weighing precision.
The main unit uses fast and slow two-speed feeding, which is faster. Advanced frequency conversion technology, anti-interference technology, and automatic compensation and correction of error, suitable for quantitative packaging of powder, granular and sheet materials.
The products are widely used in the filling of various powders and small granular products in the food, chemical, daily chemical, pharmaceutical, health care products and other industries.
1. Adopt all stainless steel production process, in line with food and drug hygiene requirements;
2. Electronic screen, PLC control technology, easy to operate
3. Microcomputer metering, independent weighing system, high weighing accuracy and fast speed
4. Stepper motor replaces electronic clutch, no wear, no contact, maintenance-free, low failure rate;
5. The rolling bearing replaces the sliding bearing and has little wear.
6. The broken arch motor is arranged in the silo to disperse the material while conveying to prevent agglomeration;
7. Manually assist the upper bag (barrel), pneumatic clamp bag, strong tightness to prevent material spillage;
Main technical parameters
Applicable materials: Powder, mixture
Measuring range: 4-10 kg
Packing accuracy: ±0.2-0.5%
Filling speed: 4-10 packs / min
Feeding method : Screw feed
Air source pressure: 0.4-0.6Mpa
Air consumption: 1 m3/h
Power / power: 380V / 1.5KW (three-phase ordinary motor plus inverter)
